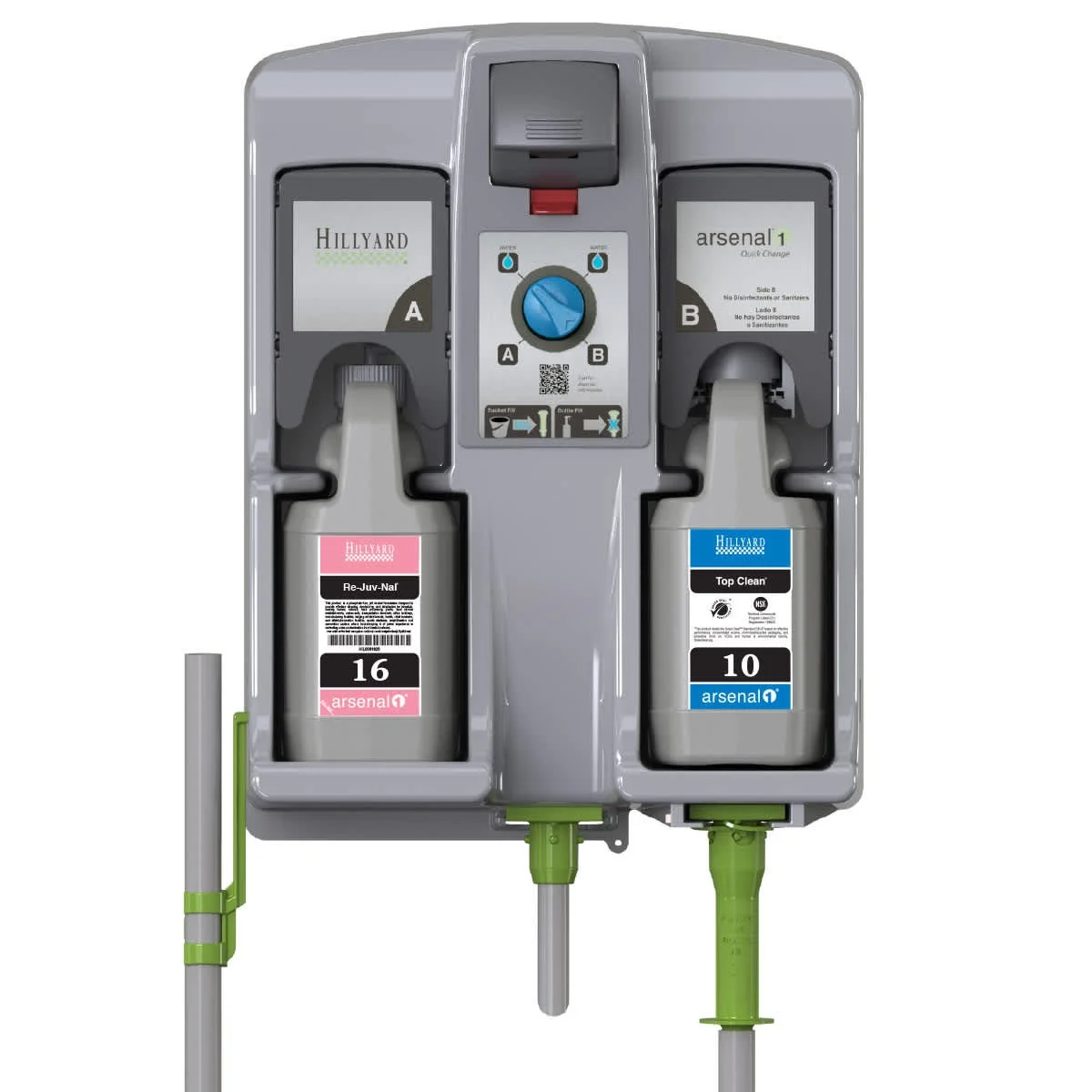

QC Quick Change Dispenser

$199.99

In NYC or NJ? We’ll install it for you. See Installation Service.

Two products, one compact wall unit. Accurate dilution every time, with a quick-change slot that lets you swap products in seconds.

Features

  • ASSE 1055B certified for backflow protection

  • Dedicated slot (Side A) keeps a disinfectant or sanitizer ready 24/7

  • Quick-change slot (Side B): slide a refill in and the dock engages with a click; pull it out to release

  • Clear water access: set the dial to the water icon for water only

  • Simple push button operation

  • Fills spray bottles, buckets and autoscrubbers; locking, tethered 6 ft bucket fill hose

  • Hose screen filters replace without removing the cabinet

  • QR code for install videos, user instructions and refill info

  • Reinforced polypropylene construction

  • No assembly: connect the water hose and mount with 4 screws (hardware included)

Specs

  • Size: 14.25" W x 18" H x 8" D

  • Flow rate: 3.5 gal/min

  • Mount: wall mounted. Color: gray. Made in USA

  • Hillyard item: HIL99702EG (E-Gap) / HIL99703AG (Air Gap)

What's Included

Compatibility: Works with Arsenal One 2.5L refills. Dilution tips are in the bottle, so there are no tips to service on the dispenser. Optional drip tray HIL99533 sold separately.

Hillyard Arsenal One brochure (PDF)
